FDB equipment terminal box 4core 12core 24core 48core fiber optic distribution box fiber splitter box

Product Description

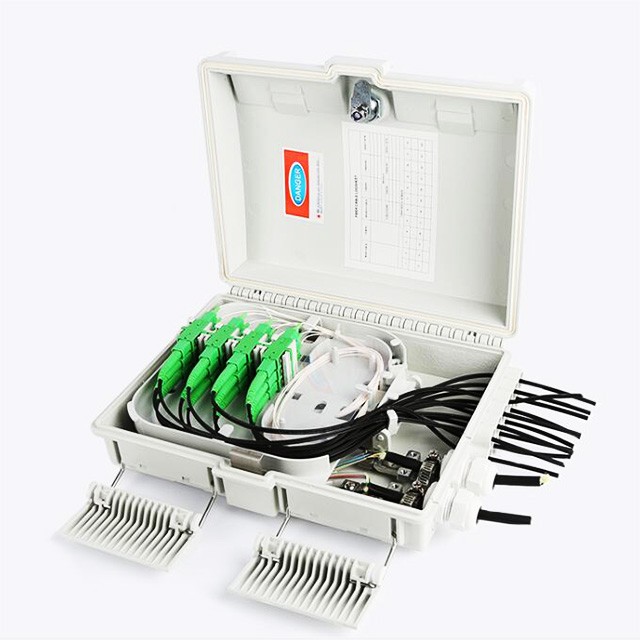

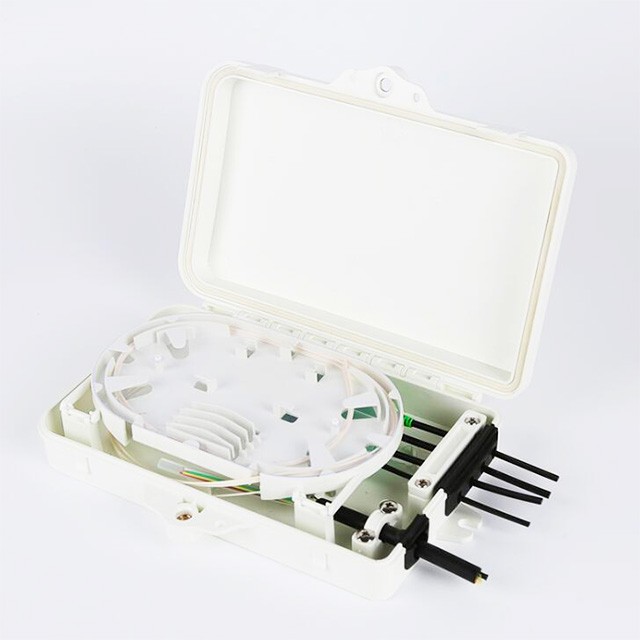

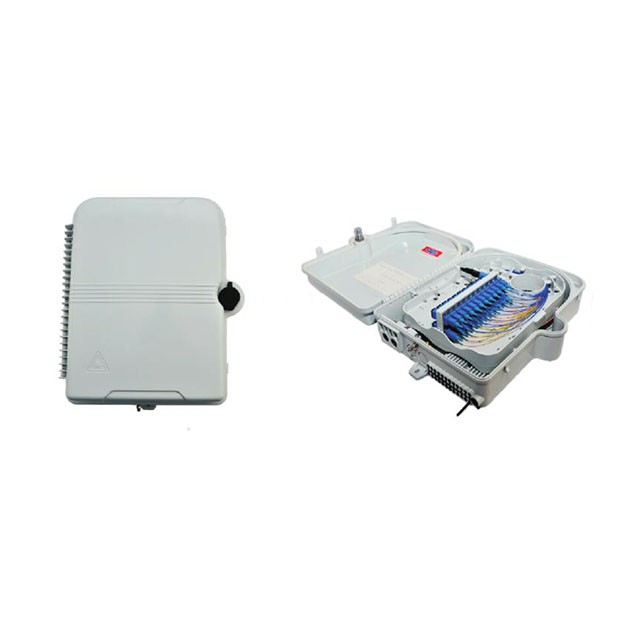

FDB equipment terminal box 4core 12core 24core 48core fiber optic distribution box

Introduction

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Technical specifications

1,Environmental requirement

Working temperature:-40℃~+85℃

Relative humidity:≤85%(+30℃)

 Atmospheric pressure:70KPa~106Kpa

2,Main technical datasheet

Insertion loss:≤0.2dB

UPC return loss:≥50dB

APC return loss:≥60dB

Life of insertion and extraction:>1000 times

3,Thunder-proof technical datasheet

The grounding device is isolated with the cabinet, isolation resistance is less than 2MΩ/500V(DC);

IR≥2MΩ/500V

The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,no flashover;U≥3000V
