Product Description
Technical Details:

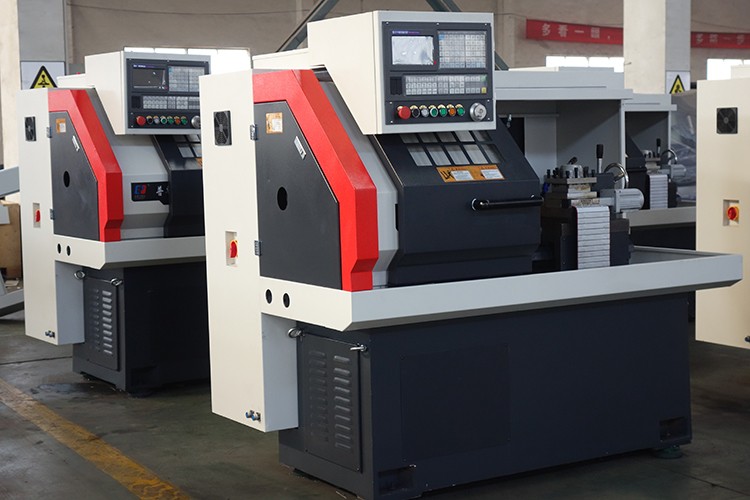

Flat Bed Small CNC Lathe Machine for Metal Cutting CK6140
1. Variable frequency stepless speed regulation
2. Servo system
3. Four-position electric tool holder
Flat Bed Small CNC Lathe Machine for Metal Cutting CK6132 technical parameter:
| Model | CK6140 |
| Max swing over bed | 320mm |
| Max swing over cross slide | 90/110mm |
| Max processing lenght | chuck290mm/collet400mm |
| X/Z axis travel | 300/380mm |
| Spindle nose | A2-5 |
| Spindle bore | 48mm |
| Bar capacity | 41mm |
| Max spindle speed | 2500rpm |
| Chuck size | 160 |
| Spindle motor | 4kw |
| X/Z axis repeatability | ±0.005mm |
| X/Z axis feed motor torque | 4Nm |
| X/Z rapid traverse | X:8 Z:10mm/min |
| Tailstock quill dia | 60mm |
| Quill travel | 100mm |
| Quill taper | MT4 |
| Tool post type | 4-position electric turret |
| Cutting tool size | 16x16mm |
| Guide form | shuangshan |
| Total power capacity | 7KVA |
| Machine dimension | 1750x1150x1650 |
| Net weight | 1200kg |
Detailed Images
Product Overviews
Packaging & Shipping
