PRODUCT PARAMETERS
| Item No.: | YF-FHJY-100 | YF-FHJY-200 | YF-FHJY-300 | YF-FHJY-400 | YF-FHJY-500 |
| Power: | 100W | 200W | 300W | 400W | 500W |
| LED Brand: | High Luminous Efficiency chips | ||||
| LED Quantity: | 2 COB | 4COB | 6COB | 8COB | 10COB |
| Lamp Efficiency: | >100 lm | ||||
| Luminous flux(lm): | 10000 | 20000 | 30000 | 40000 | 50000 |
| CRI: | Ra>80 | ||||
| Product Dimension(mm): | 285*355*90 | 425*325*105 | 435*390*110 | 460*455*120 | 670*320*200 |
| Product Weight(KG) | 3.7 | 5.9 | 7.6 | 9.8 | 13.3 |
| Input Voltage: | AC100-277V 50/60Hz | ||||
| Power Factor: | >0.95 | ||||
| Power Efficiency: | >90% | ||||
| Operating Temperature: | -40°C~45°C | ||||
| Lifespan: | 50000H | ||||
| Beam angle | 35°, 45°, 60°, 90° | ||||
Product Overview
Details&Benefits
ADVANTAGES
·Waterproof IP66
By using waterproof connector and silicon rubber sealing, up to IP66, meeting the requirements for harsh, tough environment.

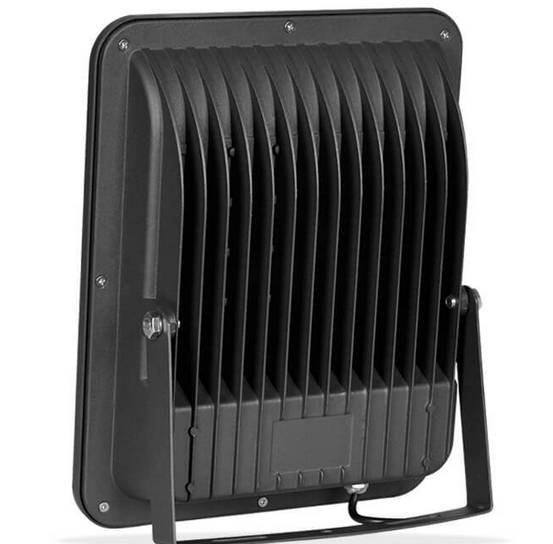

·Perfect Buckle design
Each
piece also closely spaced fins remain equal engaging, form a whole,
effectively enhance the fin firmness, combined with minimum weight for
maximum heat dissipation area.
·High grade Glass panel
3-5 mm tempered glass panel, safely protect the lighting source, and the light transmittance rate is up to 98%.
·Perfect Shaper design
Fin
assembly and cooling plate tightly mated to minimize thermal resistance
without plating, aesthetics and environmental protection.
·HDT technology
High efficient copper pipes connect the heat source directly, rapidly radiate the heat to fins.
·WIDE Application
100W TO 500W available, motion sensor available.
RGB Color available.
Gas station, billboard, building, bridge, stadium, street, road, warehouse, garden, trees, etc.
